gnn_serial.h File Reference

#include "gnn_node.h"

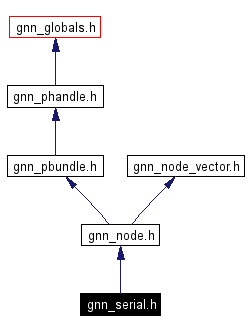

Include dependency graph for gnn_serial.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
gnn_node *	gnn_serial_new (int size,...)
	Build a node stack.
gnn_node *	gnn_serial_new_with_node_vector (gnn_node_vector *v)
	Build a node stack with a given node vector.
gnn_node *	gnn_serial_get_node (gnn_node *node, int i)
	Get the i-th subnode.
int	gnn_serial_get_size (gnn_node *node)
	Gets the number of nodes that the stack is build of.

---

Function Documentation

gnn_node* gnn_serial_get_node (  gnn_node *    node, int    i )

This function returns a pointer to the stack's i-th node. Parameters: node  A stack node. i  The node's index (should be within [0, size-1]). Returns: A pointer to the i-th node or NULL if failed. Definition at line 666 of file gnn_serial.c.

int gnn_serial_get_size (  gnn_node *    node )

Parameters: node  A stack node. Returns: Size of the stack. Definition at line 679 of file gnn_serial.c.

gnn_node* gnn_serial_new (  int    size, ...    )

This function builds a new gnn_serial node. The node computes the function , where are the functions implemented by the subnodes given as arguments, in the same order. The input and output sizes should match on each other, so that the output size of a preceeding node must be the same as the input size of the following node. Example: gnn_node *stack, *node1, *node2, *node3; // build the nodes 1 to 3 ... // build the stack stack = gnn_serial_new (3, node1, node2, node3); Parameters: size  The number of subnodes. ...  The list of subnodes. Returns: A new stack node. Definition at line 523 of file gnn_serial.c.

gnn_node* gnn_serial_new_with_node_vector (  gnn_node_vector *    v )

This function builds a new gnn_serial node. The node computes the function , where are the functions implemented by the subnodes given as arguments, in the same order. The input and output sizes should match on each other, so that the output size of a preceeding node must be the same as the input size of the following node. Example: gnn_node *stack; gnn_node_vector *vector; // build the node vector vector = gnn_node_vector_new (3); // build the nodes vector[0], vector[1] and vector[2] ... // build the stack stack = gnn_serial_new_with_node_vector (vector); Todo: Automatic divergence-convergence insertion. Parameters: v  A pointer to a gnn_node_vector. Returns: A new stack node. Definition at line 592 of file gnn_serial.c.

---
