gnn_dataset.h File Reference

#include "gnn_globals.h"
#include "gnn_input.h"

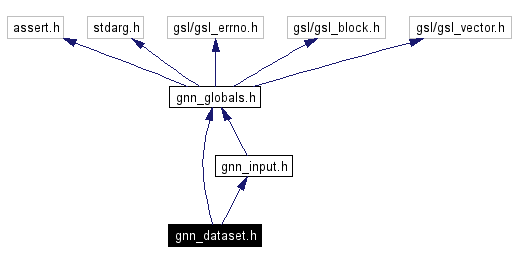

Include dependency graph for gnn_dataset.h:

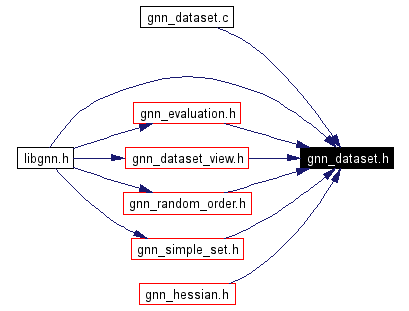

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	_gnn_dataset
Typedefs
typedef _gnn_dataset	gnn_dataset
	The datatype for dataset reset functions.
typedef int(*	gnn_dataset_reset_type )(gnn_dataset *set)
	The datatype for dataset reset functions.
typedef int(*	gnn_dataset_get_type )(gnn_dataset *set, size_t k, gsl_vector **x, gsl_vector **t, double *p)
	The datatype for dataset get functions.
typedef void(*	gnn_dataset_destroy_type )(gnn_dataset *set)
Functions
int	gnn_dataset_init (gnn_dataset *set, size_t size, size_t n, size_t m, gnn_dataset_reset_type reset, gnn_dataset_get_type get, gnn_dataset_destroy_type destroy)
	Initializes a gnn_dataset : Datasets for Training..
void	gnn_dataset_destroy (gnn_dataset *set)
	Destroy a dataset.
int	gnn_dataset_reset (gnn_dataset *set)
	Reset a dataset.
int	gnn_dataset_get (gnn_dataset *set, size_t k, gsl_vector **x, gsl_vector **t, double *p)
	Gets the i-th pattern.
size_t	gnn_dataset_get_size (gnn_dataset *set)
	Gets the size of the dataset.
size_t	gnn_dataset_input_get_size (gnn_dataset *set)
	Gets the input size of the dataset.
size_t	gnn_dataset_output_get_size (gnn_dataset *set)
	Gets the output size of the dataset.

---

Typedef Documentation

typedef void(* gnn_dataset_destroy_type)(gnn_dataset *set)

Definition at line 79 of file gnn_dataset.h.

---

Function Documentation

void gnn_dataset_destroy (  gnn_dataset *    set )

This function destroys the dataset. Parameters: set  A pointer to a gnn_dataset : Datasets for Training.. Definition at line 318 of file gnn_dataset.c.

int gnn_dataset_get (  gnn_dataset *    set, size_t    k, gsl_vector **    x, gsl_vector **    t, double *    weight )

This function returns pointers to the pattern located atstores the dataset's i-th pattern into the buffers "x" and "t" (which should be both gsl_vector of the correct size) and its corresponding weight into the location pointed by "weight". Note that what "the i-th pattern" means depends on the underlying implementation. Also, i should be within 0 and the dataset's size. Parameters: set  A pointer to a gnn_dataset : Datasets for Training.. i  The index of the pattern to be retrieved. x  A pointer to the gsl_vector where the input pattern should be placed in. t  A pointer to the gsl_vector where the output pattern should be placed in. weight  A pointer to a double where the pattern's weight should be placed in. Returns: 0 if succeeded. Definition at line 365 of file gnn_dataset.c.

size_t gnn_dataset_get_size (  gnn_dataset *    set )

This function returns the dataset's size. Parameters: set  A pointer to a gnn_dataset : Datasets for Training.. Returns: Returns the size. Definition at line 386 of file gnn_dataset.c.

int gnn_dataset_init (  gnn_dataset *    set, size_t    size, size_t    n, size_t    m, gnn_dataset_reset_type    reset, gnn_dataset_get_type    get, gnn_dataset_destroy_type    destroy )

This function initializes a given dataset, setting its properties and installing its functions. If the reset or destroy functions aren't provided, then the default functions gnn_dataset : Datasets for Training. and gnn_dataset : Datasets for Training. are installed respectively. The "get" function is mandatory and can't be omitted. As an example, suppose that you have made your own extension to the gnn_dataset : Datasets for Training. datatype, which you called "my_dataset_type". Also, suppose you have already coded the appropiate "reset", "get" and "destroy" functions for your special dataset. Then, my_dataset_type *myset; // a pointer to the dataset to be created gnn_dataset *set; // a pointer to the same dataset, but viewed as a // gnn_dataset // allocate memory for the dataset myset = (my_dataset_type *) malloc (sizeof (my_dataset_type)); // initialize the dataset gnn_dataset_init (set, 100, 5, 2, my_dataset_reset, my_dataset_get, my_dataset_destroy); would initialize your dataset for 100 patterns, whose inputs and outputs are of size 5 and 2 respectivelly. Parameters: set  A pointer to a gnn_dataset : Datasets for Training.. size  The number of patterns that it contains. n  The size of the inputs. m  The size of the outputs. reset  A pointer to the dataset's "reset" function. get  A pointer to the dataset's "get" function. destroy  A pointer to the dataset's "destroy" function. Returns: 0 if succeeded. Definition at line 273 of file gnn_dataset.c.

size_t gnn_dataset_input_get_size (  gnn_dataset *    set )

This function returns the size of the pattern's input vector size. Parameters: set  A pointer to a gnn_dataset : Datasets for Training.. Returns: Returns the size. Definition at line 403 of file gnn_dataset.c.

size_t gnn_dataset_output_get_size (  gnn_dataset *    set )

This function returns the size of the pattern's output vector size. Parameters: set  A pointer to a gnn_dataset : Datasets for Training.. Returns: Returns the size. Definition at line 420 of file gnn_dataset.c.

int gnn_dataset_reset (  gnn_dataset *    set )

This function resets the dataset. Parameters: set  A pointer to a gnn_dataset : Datasets for Training.. Returns: 0 if succeeded. Definition at line 336 of file gnn_dataset.c.

---
